Wego4
Four synchronised global-shutter cameras cover 270° horizontally and 155° vertically, so the work zone stays in frame when the wearer turns. 3 TOPS of on-device compute runs quality checks while you record — bad takes get caught on the rig, not three weeks later in the annotation queue.
Order now and your unit leaves our warehouse within 10 business days; delivery to the US then takes 5–8 business days, or about 2 days with DHL Express. Once these 5 are gone, new orders are built to order in 30–60 days.
- 4 × SC233HGS global-shutter cameras — 270° horizontal × 155° vertical, minimal blind zone
- Rockchip RV1126B with 3 TOPS and a quad-core Cortex-A53 — on-rig quality control and lightweight perception
- Synchronised capture across all four channels with a shared hardware clock
- ICM-42688 6-axis IMU at 200 / 500 Hz, hardware-timestamped against video
- Wearable or mounted on a mobile platform — same data format either way
1-year warranty · Pairs with VisionLibra Data Services
Technical specs
| Basic | |
|---|---|
| Role | Quad surround egocentric terminal — wide work-zone coverage and high-value operation capture |

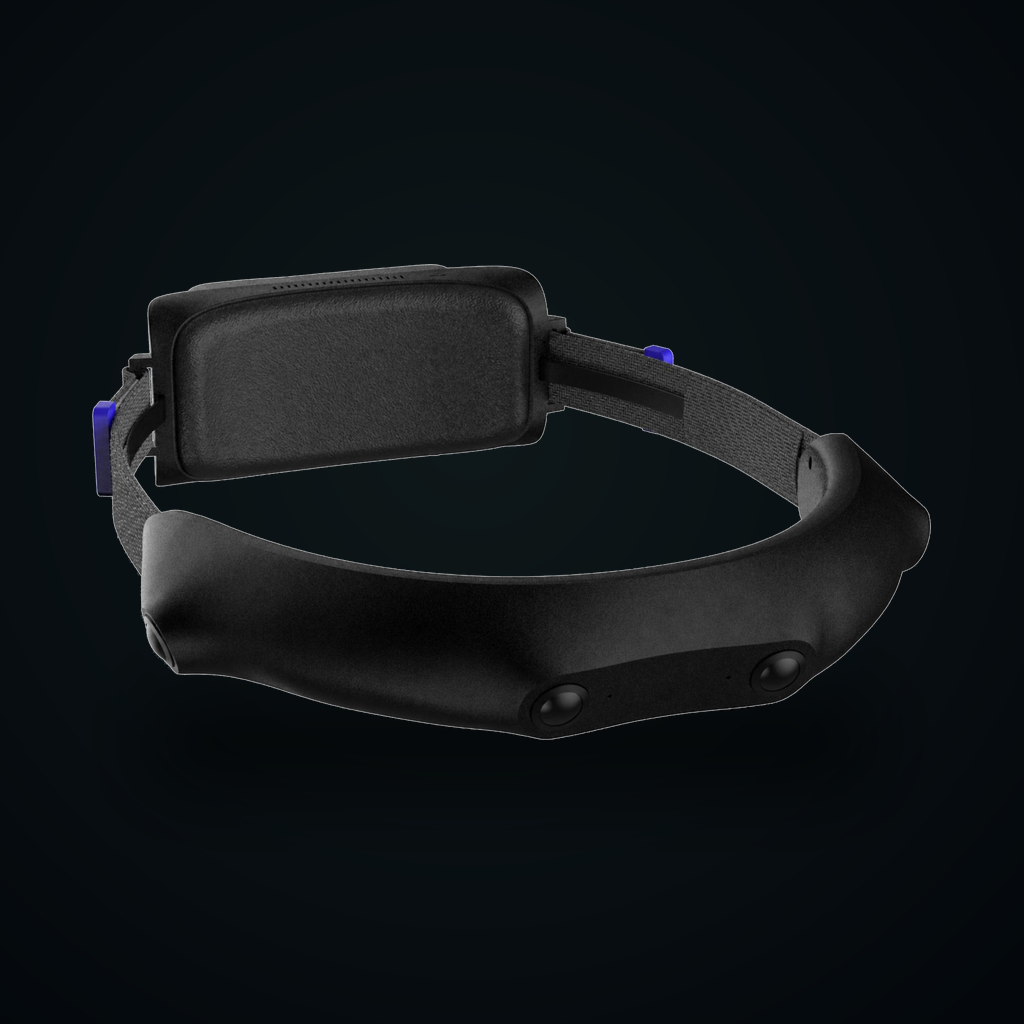

| Form Factor | Head-worn surround terminal / mobile-platform mount |
| Capture Coverage | Four synchronised global-shutter cameras, low blind zone |
| Typical Use | Robot data collection, mobile platforms, multi-angle task recording, industrial and lab operations |
| Cameras | |
| Sensor | 4 × SC233HGS, global shutter |
| Resolution | 1920 × 1200 (2 MP) per camera |
| Field of View | 270° horizontal × 155° vertical, ultra-wide surround |
| Compute | |
| SoC | Rockchip RV1126B |
| NPU | 3 TOPS — on-device quality control and lightweight perception |
| CPU | Quad-core Arm Cortex-A53 |
| Motion & Sync | |
| IMU | ICM-42688, 6-axis |
| IMU Rate | 200 Hz / 500 Hz |
| Time Alignment | Hardware timestamps across all four cameras and the IMU |
| Power | |
| Main Battery | 5600 mAh, hot-swappable |
| Backup | 500 mAh UPS — bridges the swap |
| Connectivity & Storage | |
| Wireless | Wi-Fi 6 dual-band + BLE 5.4 |
| Storage | microSD (TF) card |
| Data Output | |
| Video | MP4 / H.265 |
| Metadata | Per-image timestamps, IMU timestamps, audio, calibration parameters |
| Software | Linux, open data interface, offline trajectory-solving tools |
Local Recording & Data Ownership
Wego4 records and exports on its own — no subscription, no cloud account and no per-hour fee. What you capture is yours.
No Subscription to Record
Recording, local storage and export work out of the box. Nothing has to be activated or renewed to keep capturing.
Full Raw Export
Export video from all four cameras, the IMU stream, per-frame timestamps and the calibration files — in open formats.
You Own the Data
Everything recorded on Wego4 belongs to you. Train on it, sell it or share it — we claim no rights to your recordings.
No Commercial Data Fees
Commercial data collection carries no extra license, royalty or per-hour charge. The hardware price is the whole cost.
Not the same as SDK Pro. The SpatialAI SDK Pro commercial license covers shipping products built on the SpatialAI SDK software. It is not required to record, export or commercially use data captured with Wego4. Data Services are likewise optional.
Built for
Manipulation Data
Hands stay in frame through the whole reach-grasp-place cycle.
Mobile Platforms
Bolt it to an AMR and capture the same surround view the robot sees.
On-Rig QC
3 TOPS flags blur, occlusion and dropped frames before the take leaves the site.
Lab & Industrial
Multi-angle procedure capture where a single forward camera loses the detail.
Surround capture with quality control at the edge
Capturing a dataset rather than building one device? Our data services team runs collection, annotation and evaluation on top of this hardware.
